PFC Choke

ATRXSG03291000100PQ

SPECIFICATIONS

Inductance Value 329µH
Max ripple current at 180V input and 1020W power input 5.84A
Flux density at 10A peak current 350mT
Core Type PQ3230
DC resistance at 25°C 10mΩ

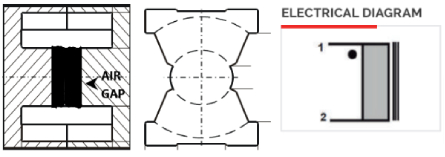

Value of air gap 12.12mm
Ferrite Core Material CF295
DC Output Voltage 380-400V

ELECTRICAL SPECIFICATIONS

Inductance Value 329µH
Inductance at 25°C 329µH ±10%
L0 (100kHz/1Vac) 329µH
L5.9A(100kHz/1Vac/5.84Adc) 329µH -5%
DC Resistance at25°C

FEATURES

  • PFC Choke designed for 1000W, 65Khz , 220V rms operation
  • Ferrite core for lower core loss and lower cost solution compared to sendust
  • Wide operating temperature range -25°C to 120°C
  • Available both in single air gap and distributed air gap for higher efficiency
  • Part no prefix SG for single gap and DG for distributed gap
