SPECIFICATIONS
| Inductance Value | 842µH |
|---|---|
| Max ripple current at 180V input and 1020W power input | 4.09A |
| Flux density at 10A peak current | 350mT |
| Core Type | PQ3230 |
| DC resistance at 25°C | 10mΩ |

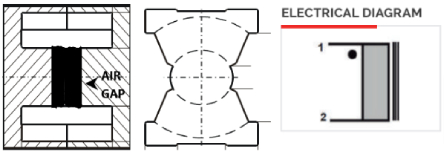

| Value of air gap | 2.29mm |
| Ferrite Core Material | CF295 |
| DC Output Voltage | 380-400V |
ELECTRICAL SPECIFICATIONS
| Inductance Value | 842µH |
|---|---|
| Inductance at 25°C | 842µH ±10% |
| L0 (65kHz/1Vac) | 842µH |
| L5.9A(65kHz/1Vac/5.84Adc) | 842µH -5% |
| DC Resistance at25°C |
FEATURES
- PFC Choke designed for 750W, 65Khz , 220V rms operation
- Ferrite core for lower core loss and lower cost solution compared to sendust
- Wide operating temperature range -25°C to 120°C
- Available both in single air gap and distributed air gap for higher efficiency
- Part no prefix SG for single gap and DG for distributed gap
